Graphic display of stories
Graphs mode gives you access to quick visual analysis of mentions by selected filters. Learn more about the Graphs mode.
Visual analytics elements are also available in the Stories view mode. Here are the main graphs on the dynamics of the stories and non-repeating graphs available for the dataset without a story generating.
To use the story generating mode, learn more about stories generation.

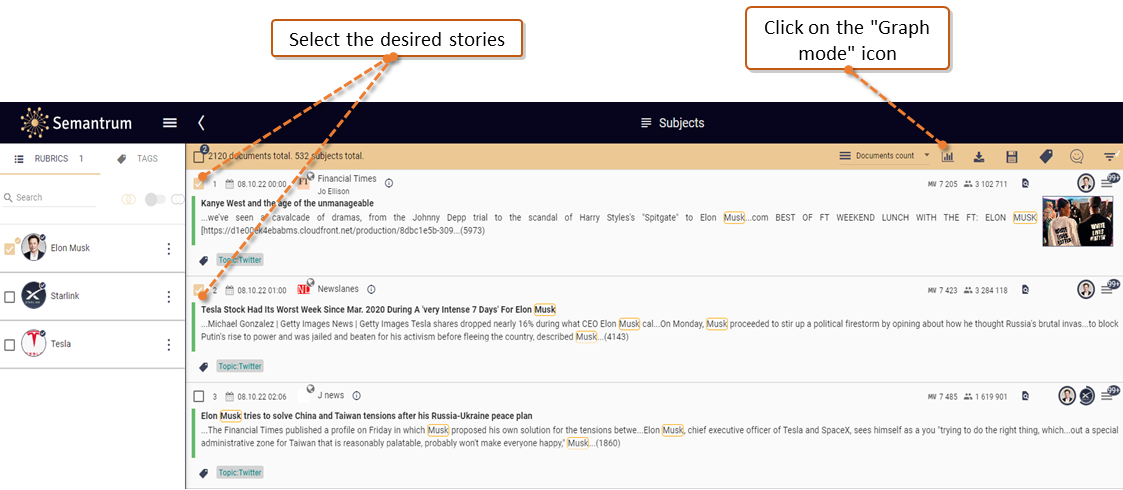

To switch to the graphical mode, select 1 or more stories and click on the graph icon on the publications action panel
.

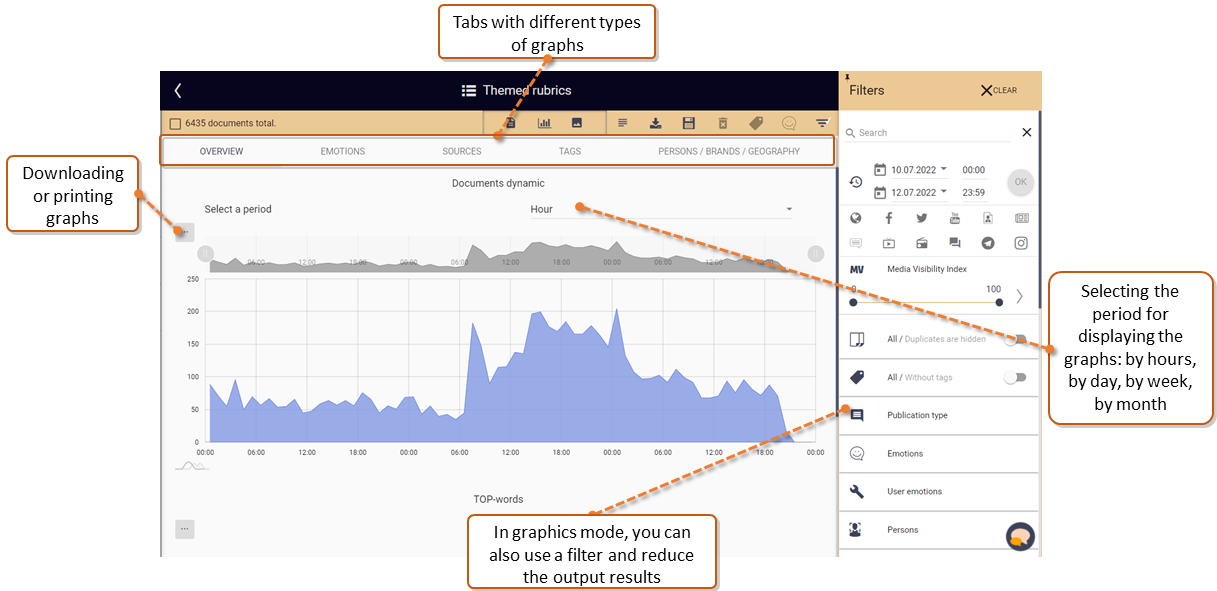

In the visual analytics mode, there are several tabs with thematically grouped charts: dynamics of stories, dynamics of story coverage, comparison of stories.
You can select graphs by the dynamics of selected stories by the number of publications in the stories, as well as (on the next tab) - by the total amount of contacts with all publications in the stories. For these graphs, you can switch from absolute indicators (number of mentions) to relative indicators (percentage of the total number of mentions).
In this way, you can see if there is a increasingly growing trend among the selected stories in terms of the number of posts or the number of contacts.
On the last tab of the graphs, you can compare stories by the number of posts in them, and see their weight in the entire information field (the share of the number of posts in each story of all the currently filtered posts).
Please note:
- You can select all stories in the selection and go to the graphs, but in any case only the first 10 stories will be displayed in the graphs. The selection of the first 10 stories corresponds to the selected sorting of stories (i.e. either top 10 stories by number of documents, top 10 stories by coverage or by Media Visibility Index).
- The number of stories on the graph is displayed according to the selected period, to see the number, select the required time period on the graph.
Data export
The data for each graph can be exported in different formats:
What to do if...
If you can't find your desired result in the standard graphs, we recommend that you check the .xlsx file format. If you still can't find the data you need, please contact your account manager to set up a personal dashboard in your account. Please click here to find out what a dashboard can be.
